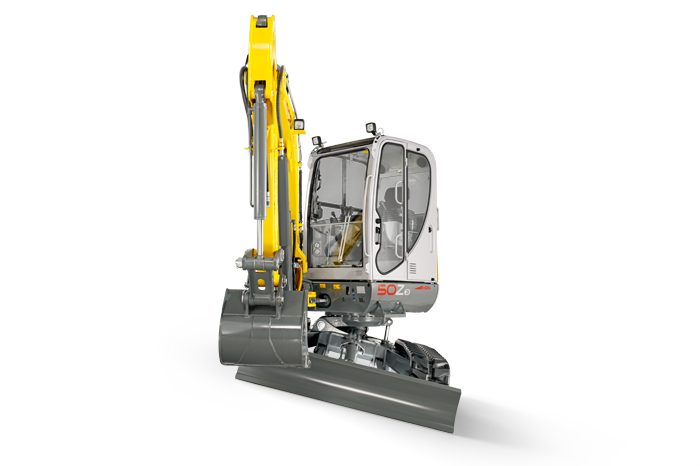

Please check out the videos below to see the Wacker Neuson VDS system in action
www.youtube.com/watch?v=eS5P_ZdoJcs
www.youtube.com/watch?v=4WssTqGB-4c
Technical specifications wacker neuson-50z3[1].pdf (243212)
Operating data
| Shipping weight min. | 10,814 lb |
| Operating weight min. | 11,640 lb |
| Biting force max. | 6,229 lbf |
| Breakaway force max. | 8,556 lbf |
| Digging depth | 138 in |
| Dumping height max. | 145 in |
| Digging radius | 236 in |
| L x W x H | 217 x 78 x 101 in |
Engine / Motor
| Engine / Motor manufacturer | Yanmar |
| Engine / Motor type | 4TNV88 |
| Engine / Motor | Water-cooled 4-cylinder diesel engine EPA III |
| Displacement | 134 in³ |
| RPM / speed | 2,400 rpm |
| Engine performance acc. to ISO | 38.2 hp |
| Battery | 88 Ah |
| Tank capacity | 88 US qt |
Hydraulic system
| Duty pump | Double variable- & two-gear pump |
| Flow rate | 44 US gpm |
| Operating pressure for working and traction hydraulics | 3,481 psi |
| Operating pressure Slewing gear | 3,118 psi |
| Hydraulic oil tank | 85 US qt |
Wheel set
| Travel speed max. | 2.9 mph |
| Gradeability | 58 % |
| Chain width | 15.7 in |
| Ground clearance | 12 in |
Dozer Blade
| Width | 78 in |
| Height | 15 in |
| Stroke Above ground | 16.3 in |
| Stroke Below ground | 17.9 in |
